The shell elements in NIDA can be used to trace the large deflection behavior of shell structures, especially the snap-through and snap-back buckling.

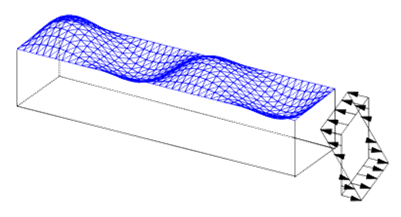

Figure1 Local buckling of top flange of a box section under moment

Hinged Cylindrical Shell



Figure2 Layout and properties

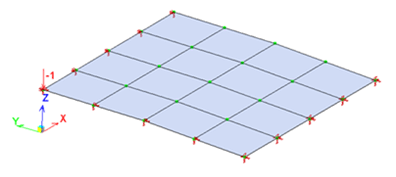

Figure3 Finite element model (1/4 of Original Shell)



Load-deflection Curve of Hinged Cylindrical Shell (T=12.7mm)









Load-deflection Curve of Hinged Cylindrical Shell (T=6.35mm)
